25-26 October 1994
Dayton Stouffer Hotel
Sponsored by
DoD Joint Directors of Laboratories, Manufacturing & Engineering Systems Subpanel
Wright Laboratory Manufacturing Technology Directorate
Hosted by
National Security Industrial Association, Dayton Chapter
Technical Report
Compiled and Edited by
Lawrence Associates Inc.
,
This report summarizes the issues, conclusions and recommendations generated at the Virtual Manufacturing Technical Workshop held in Dayton, Ohio on 25-26 October 1994. In addition, it contains the viewgraphs, breakout session reports and selected commentary from participants. The commentary contained in this report does not necessarily represent the views held by the Department of Defense or Lawrence Associates Inc.
Table of Contents
Appendices
List of Figures

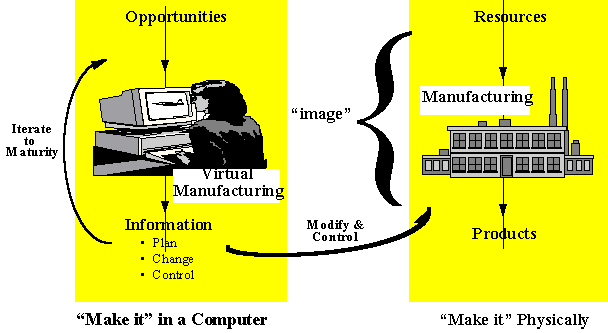

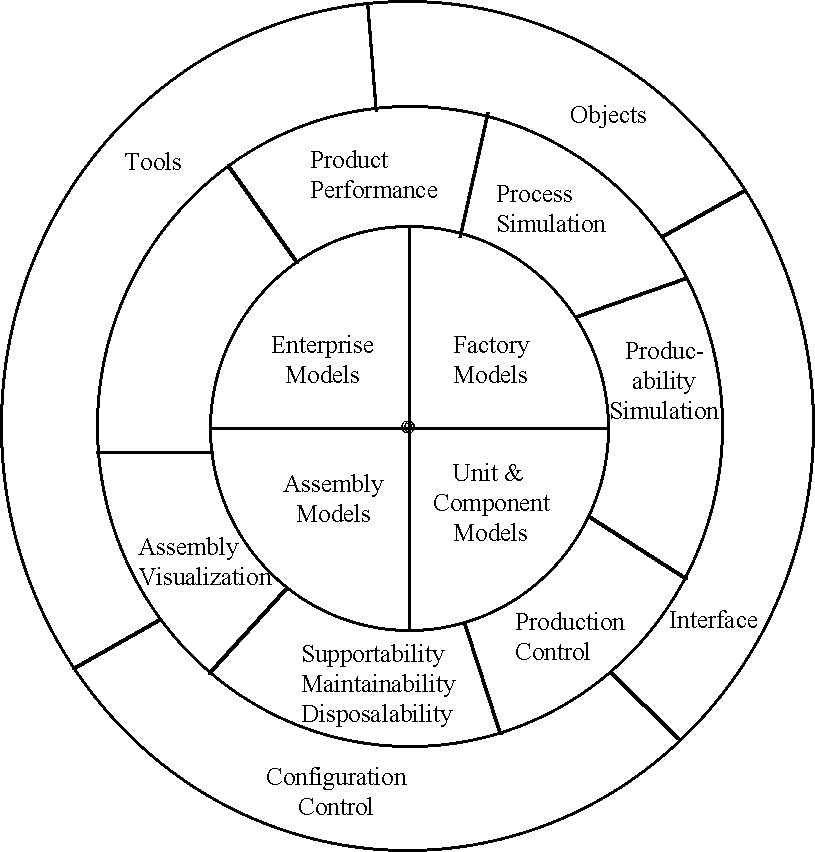

FIGURE 2-1. VM VISION

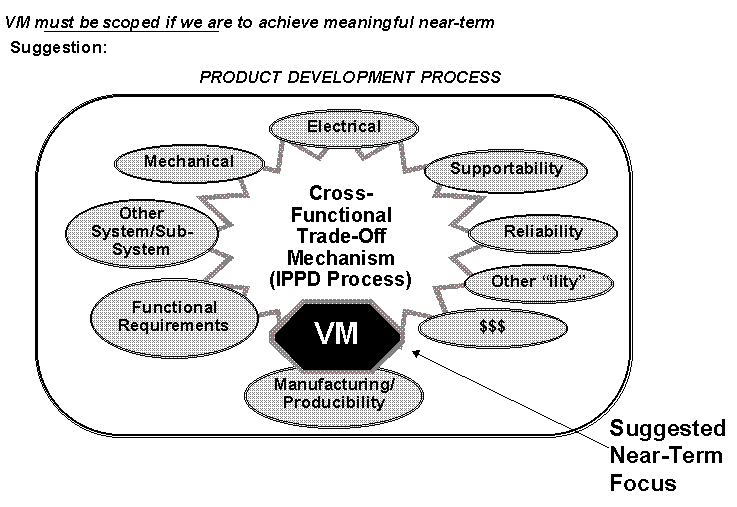

FIGURE 3-1. CROSS-FUNCTIONAL TRADES

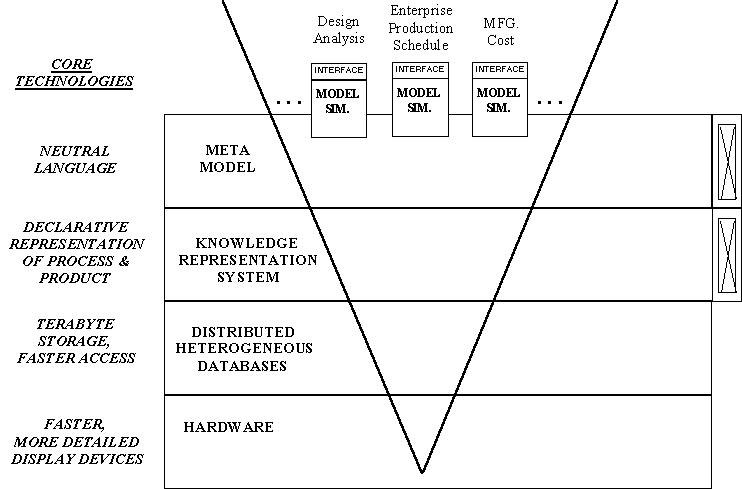

FIGURE 4-1. VM SOFTWARE FRAMEWORK

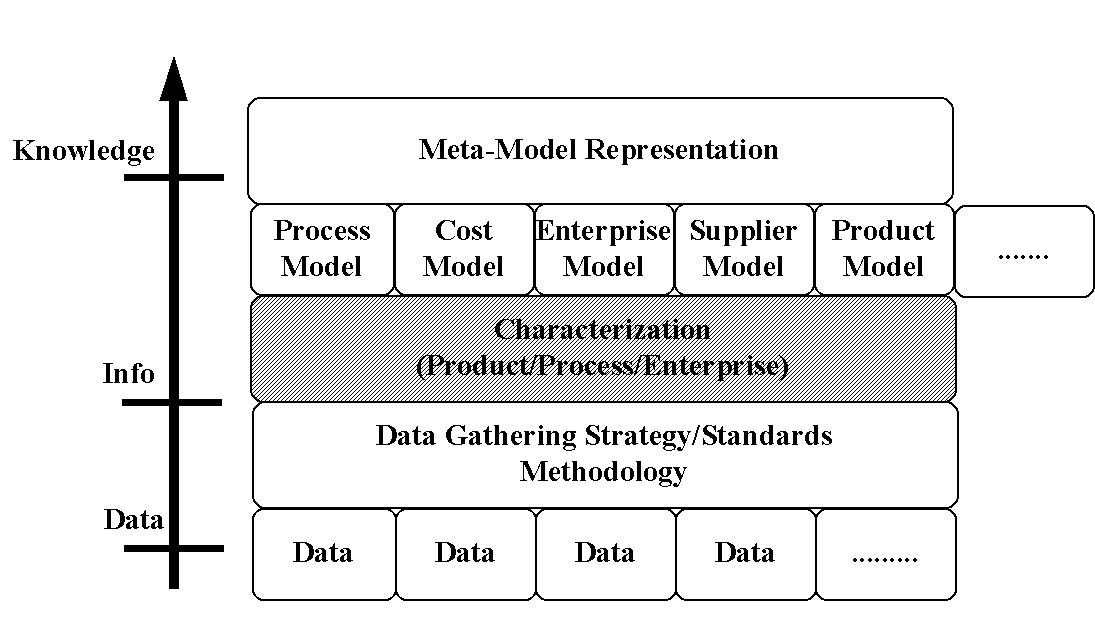

FIGURE 4-2. VM FRAMEWORK CENTERING ON CHARACTERIZATION

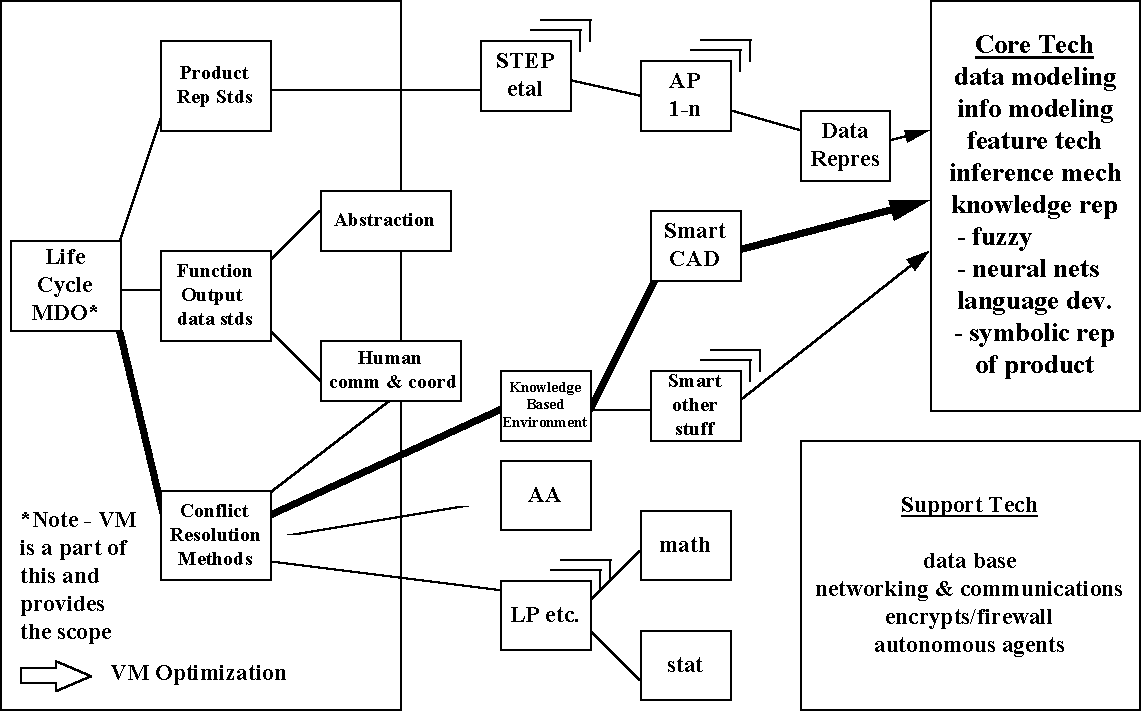

FIGURE 4-3. SMART-CAD TECHNOLOGY ROADMAP
FIGURE 4-4. TECHNOLOGY ROADMAP RELATED TO LEGACY SYSTEMS

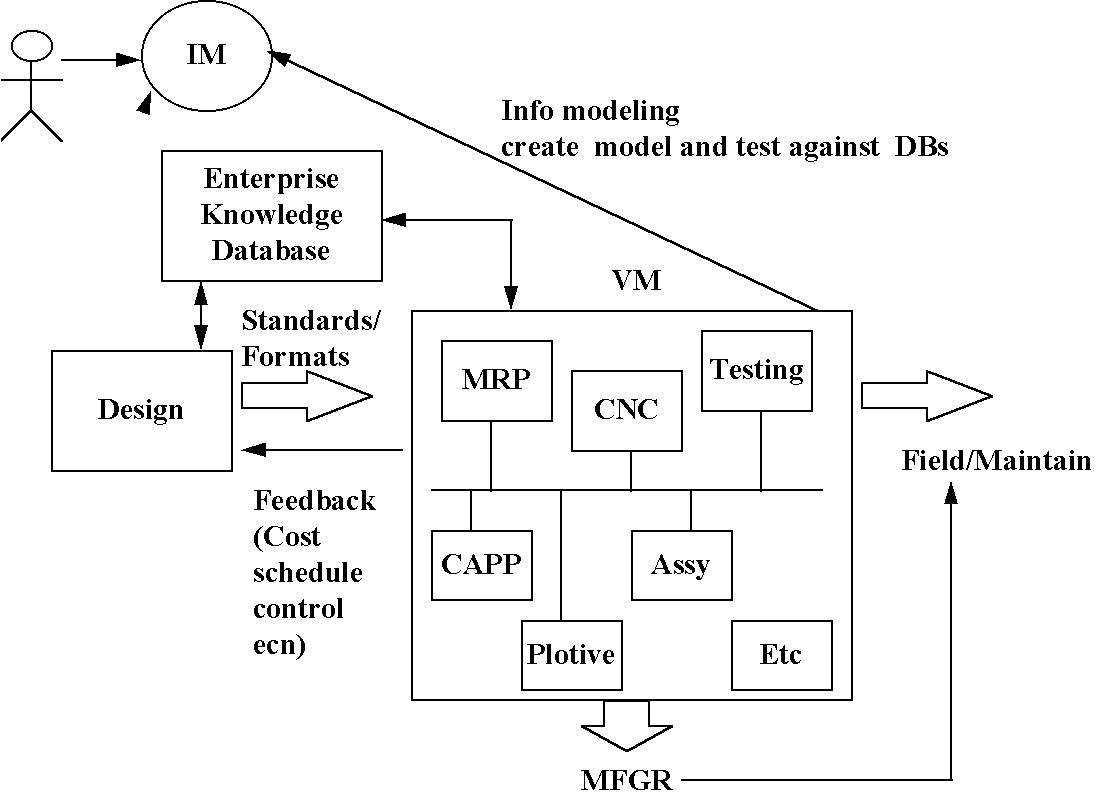

FIGURE 4-5. STRAWMAN ARCHITECTURE
FIGURE 4-6. TECHNOLOGY ROADMAP
List of Tables
TABLE 1. BREAKOUT SESSIONS
TABLE 2. VM USER REQUIREMENTS
TABLE 3. VM TECHNICAL AREAS
TABLE 4. VM TECHNOLOGIES
TABLE 5. TOP TECHNICAL AREAS
As a result of the requirements generated at the User Workshop, a Virtual Manufacturing Technical Workshop was held on 25-26 October 1994 in Dayton, Ohio. The purpose of the Technical Workshop was to explore the VM technologies in the context of the user requirements and generate a "technology roadmap" for VM. This report documents the proceedings of the technical workshop and introduces the VM Technology Roadmap.
The workshop was organized around four breakout phases of two hours each, with
intervening general sessions of one hour each to share the information
generated at each breakout session. An introductory plenary session set the
stage. The phases were structured to move from breadth to depth of VM
technologies, culminating in a consensus-driven technology roadmap. Each
breakout session addressed the issues from slightly different perspectives.
1.1
The Techn
ical Areas of VM
A strawman listing of technical areas and technologies was created based on the
information generated at the User Workshop. These lists of nine technical
areas and sixteen technologies were presented at the opening plenary session to
set the stage for detailed technological explorations.
The participants modified several of the technical areas and added four during Phase I. The changes were not expansions of the scope of VM technologies, nor were they inconsistent with the intention of the participants at the user workshop. The changes made certain categories clearer and more refined (e.g., separating architecture from methodology ). Other additions were evident in the user workshop report, but were not clearly present in the strawman, so the changes raised their visibility (e.g., cross-functional trades and manufacturing process characterization). See section 3.2 for details.
The list of technologies of relevance to VM was expanded to over 40 during the workshop. The technologies were categorized by the participants according to whether they were a core, an enabling, a show-stopper or common technology relative to VM. Core technologies are those which collectively define VM, enabling technologies are those which must exist to realize VM, show stoppers are those which can preclude the realization of VM if insufficiently developed, and common technologies are those which are important to realize VM but are common to many other domains. See section 3.5 for details.
The workshop participants mapped the user requirements generated at the User
Workshop to as many of the technical areas and technologies as time permitted.
In addition, they identified the associated benefits, technical barriers,
maturity levels, risks and timeframes to develop the technologies. Finally,
they identified the key players and organizations working in the areas. Much
of the detailed information generated about the technical areas and
technologies is captured on the breakout session viewgraphs in Appendix E.
The breakout groups developed technology roadmaps specific to the context on
which they focused, including much of the supporting information. However,
these were not integrated into a comprehensive technology roadmap at the
workshop because of the limited amount of time and the complexity of VM. A
skeletal version, created from the individual roadmaps, of a potential

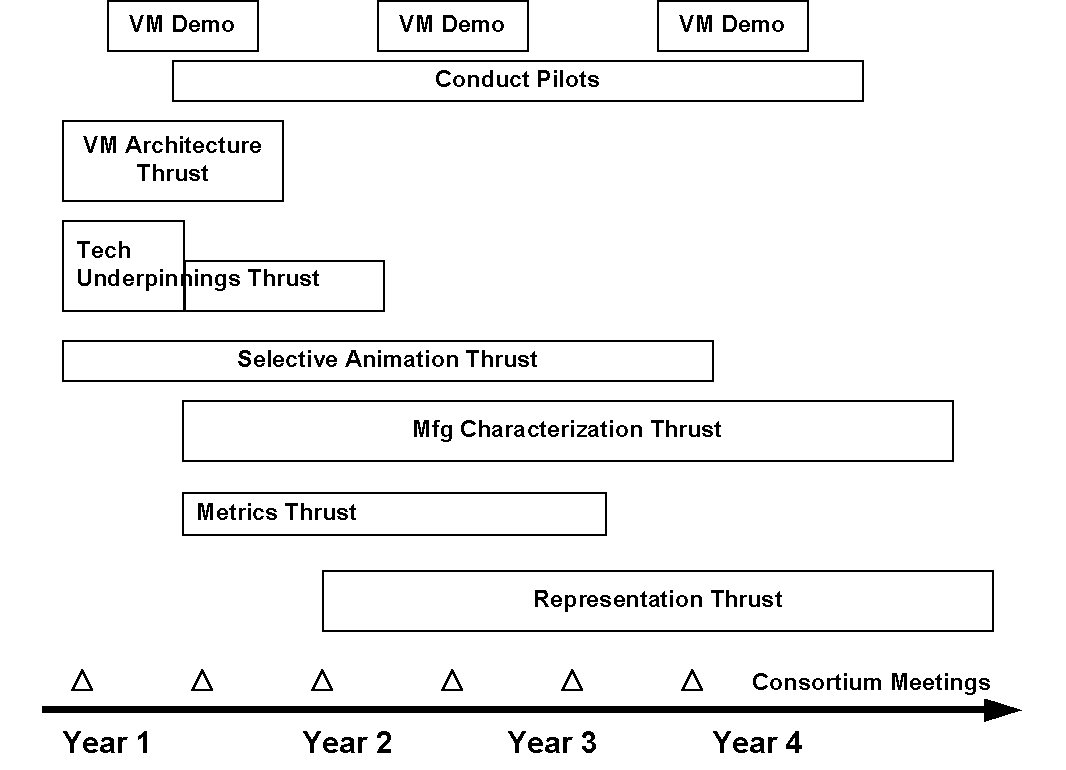

comprehensive roadmap is included in Figure 4-6.
The major finding of the workshop was the importance of three specific
technical areas: an integrating infrastructure/architecture, representation and
manufacturing characterization. The architecture area includes creating a
framework for the interoperation of all VM technologies and defining an
underlying infrastructure to share models. The representation area includes
the technologies, methods, semantics, grammars and analytical constructs
necessary to represent manufacturing information for VM. The manufacturing
characterization area involves the techniques and methods for creating generic
models of manufacturing processes based on actual shop floor data.
All groups recognized that constructing a VM architecture or framework is
necessary to realize VM. Three main reasons emerged for this ranking. First,
a well-defined architecture will help make VM distinctive from the many basic
technologies which are necessary to realize VM. Second, it will fulfill a
recognized need to technically scope VM and provide a logical, consistent basis
for further VM investments. In other words, a well-defined architecture would
provide technical guidance to the technology roadmap. Third, the effort to
create the architecture would provide a mechanism for better understanding of
the technical interdependencies of the technologies related to VM.
Many participants at the workshop also highly ranked the representation
technical area. This area involves the representation of manufacturing
knowledge at the process, design, manufacturing, engineering and enterprise
levels. This is a highly dynamic area, at present, but tends to be done in
isolation, hence, the integration of representations becomes an early issue.
The broad applicability of VM throughout the weapon systems life-cycle would
provide an opportunity to tackle the representation issues in an integrated
fashion, overcoming the inherent problems of addressing manufacturing
representation in isolation.
Progress in representation also demands significant progress in the
manufacturing characterization technical area, a fact recognized by the ranking
of this technical area in some of the groups. It is one of the most important
areas for realizing VM because techniques and methodologies for collecting,
collating and converting the data into knowledge do not exist at present.
1.2
The Technology Roadmap
The primary objective for the Technical Workshop was to develop a
Òtechnology roadmapÓ for VM. A technology roadmap accounts for
industry, academic and government activities in VM, their priorities, the
levels of investment, the funding sources, the timeframes for the activities,
the nature of VM activities (i.e., research, application, prototyping,
development, deployment), the state-of-the-art in VM technologies (including
where will it be in 3 years, 5 years and 10 years), the required maturity level
of individual technologies to enable the achievement of specific benefits, and
the technological problems common to a wide variety of VM technologies.
1.3
Recommendations
VM is being actively researched and implemented. At the both the User Workshop and the Technical Workshop, over 50% of the participants responding to the survey indicated that VM is being prototyped or is a major thrust at their organization. However, the workshop issues documented in this report show that significant effort is necessary for the DoD to gain the benefits.
Thirty-one of the participants at this workshop also came to the User
Workshop. Because it is essential that any VM initiative mounted by the
government be responsive to the needs of the users, it is recommended that the
findings of this workshop be reviewed and validated by users in the aerospace
defense industry. This kind of validation will help assure that the VM tools
which emerge from funded efforts will, in fact, be adopted and used.
2.
Introduction
Under the auspices of the DoD Joint Directors of Laboratories Manufacturing and
Engineering Systems Subpanel, a new initiative in Virtual Manufacturing is
slated to be kicked off in FY95. The initiative is targeted at distributed
modeling and simulation tools to reduce cost, risk and time for procuring DoD
weapon systems.
The first step toward successfully launching the VM initiative was taken at a Users Workshop on VM, held in Dayton on 12-13 July 1994. The workshop was held to ensure that the needs and directions of those involved in and responsible for defense manufacturing are accommodated in the VM initiative. The participants concluded that VM is one of the key technologies which allows us to go beyond the assumptions driving the historic acquisition strategies because it provides four fundamental changes for defense manufacturing: (1)ÊVM can be used to prove the production scenarios, resulting in "pre-production hardened systems" (i.e. systems which are developed and verified but never undergo actual production runs); (2) VM can support the generation of more reliable estimates of production costs and schedule because the models are based on actual processes, not just parametrics; (3)Êmodeling and simulation (M&S) can significantly improve production flexibility, hence, reducing the Òfixed costsÓ; and (4) reliable predictions of costs, risk and schedule can substantially improve the decision making process of acquisition managers.
The second step in launching the VM initiative was conducting a Technical Workshop which was held at the Dayton, Ohio Stouffer on 25-26 October 1994. Based on the user functional requirements generated at the User Workshop, participants at the Technical Workshop were asked to identify key technologies, technical barriers, areas of opportunity, and key solution strategies and to prioritize these technologies both in terms of importance and timeframe to implement and/or develop. Participants at the Technical Workshop were expected to be familiar with technologies related to VM, have a good understanding of their organizational plans and activities related to VM, and have the ability to confidently assess the evolution of these technologies over the next ten years.
The purpose of this report is to summarize the issues, conclusions and recommendations generated at the VM Technical Workshop. A great deal of the workshop commentary was collected and summarized into this document in order to provide the reader a full spectrum of views generated at the workshop. The commentary was primarily collected during the breakout sessions, and the breakout session facilitators were responsible for summarizing and accurately reflecting the views of the participants (see Table 1 for the session topics and facilitator names). As a result, it is important to note that this commentary reflects the views, opinions and beliefs of various participants and is not necessarily consistent with the views of Department of Defense, the facilitators, or even the majority of the participants. This report also contains the viewgraphs used at the five plenary sessions and a list of the participants.
Table 1. Breakout Sessions
Title Participant Profile Facilitator
1. Yellow Two academics, three airframers, two vendors, two R. Boykin
government, one missile/electronic prime, one other
2. Red Four defense aerospace manufacturers, two from R. Thomas
NASA, two from DOE, two software vendors
3. Blue Four airframers, one missile/electronic prime, one W. Henghold
vendor, one academic, one service seller and two
government
4. Brown Seven airframers, two electronics, one vendor, two G. Peisert
software, one academic, and two government
5. Green Three airframers, one electronics manufacturer, two J. Haynes
software vendors, two government
Section
2 describes the processes used to conduct the workshop, the demographics of the
participants, and key items from the User Workshop Technical Report that are
helpful for this report. Section 3 captures some of the commentary from the
workshop participants regarding the technologies, their maturity levels, risks,
barriers, timeframes to implement and the linkages of the technologies of VM to
the user requirements. Section 4 centers on the technology roadmap, including
the identification of the technology interdependencies, the prioritizations
generated by the workshop participants, and the skeletal comprehensive
technology roadmap. Section 5 contains other conclusions and recommendations.
The Appendices contain (A) a list of acronyms used in this report (B) the
workshop agenda and invitation, (C)Êthe list of participants, (D) the
opening plenary session viewgraphs presented by Michael F. Hitchcock of the Air
Force Manufacturing Technology Directorate, and (E) the breakout session
viewgraphs presented at the plenary sessions.
The workshop was organized around four breakout phases of two hours each, with
intervening general sessions of one hour each to share the information
generated at each breakout session. An introductory plenary session set the
stage. The phases were structured to move from breadth to depth of VM
technologies, culminating in a consensus-driven technology roadmap. Each
breakout session addressed the issues from slightly different perspectives.
2.1.1
Breakout Phase I: Breadth
The main purpose of Phase I was to explore the breadth of VM technologies and
to identify major technology areas that are important to achieving the Virtual
Manufacturing goals described during the workshop introduction and overview.
The exploration started with the strawman list of technology and VM
architecture presented at the opening plenary session. Discussions involved
the identification of important technologies, what it means for the technology
to be important for VM, the current levels of activity for the major
technologies, the key players, the risks, the matching to user requirements,
how well each technology is expected to satisfy those requirements, and so on.
Participants were asked to rank the technologies according to their potential
for realizing VM benefits, but the ranking was generally delayed until Phase
III.
Each session[[Otilde]]s revised/new strawman was collected, collated and used
to focus the in-depth phase by the workshop participants. Each breakout
session was asked to provide a list of technologies, matched to requirements,
prioritized according to the user requirements and the benefits expected.
These results are provided in the breakout charts in appendix E by breakout
session.
2.1.2
Breakout Phase II: Depth,
Isolated
The main purpose of Phase II was to explore a few selected technical areas in
greater depth. Each breakout session was assigned a few technical areas
(generally 3 areas) that were collated during Phase I. For each assigned
technical area, each group was asked to identify major associated technologies,
technological barriers, the technologies required to address each of those
barriers, and an estimation of the maturity level for each of those associated
technologies.
Phase II concluded with a look at strategies, timetables and potential players
(ÒwhoÓ) for addressing the technology needs. This information
was presented by each group at the concluding plenary session for the day, and
their charts are contained in appendix E.
2.1.3
Breakout Phase III: Depth,
Interdependencies
The technologies generated during Phase II were collected and organized during
the evening in preparation for Phase III. The objective of Phase III was to
recast the technology areas identified and examined in Phase I as a set of
requirements (ÒWhatsÓ), develop more detail with respect to the
associated or supporting technologies documented in Phase II (the
ÒHowsÓ) and determine the interdependencies and potential DoD
role in each of the associated technologies. In addition, each group was asked
to categorize each technology as an enabling technology, a core technology, a
VM "show-stopper" technology, or a technology common to other areas but
nevertheless important to VM. The expectation was that this approach would
enable exploration of the interdependencies of the technologies.
Phase III took significantly more time than originally planned. As a result,
most breakout sessions did not have time to explore all the technology
interdependencies.
2.1.4
Breakout Phase IV: Realizing VM
Because Phase III took more time than originally planned, the objective of
Phase IV was revised to assess the criticality of each of the key technologies
and determine the top three. The original purpose of developing strategies and
approaches for realizing and/or implementing the VM technologies was not
realized. Participants were asked to identify the low-hanging fruit (areas of
high impact opportunity for government and industry investment) for
implementation and/or development that significantly impact user
requirements.
Each session discussed and picked the top three technologies that they thought
should be pursued. These are documented in the conclusions section of this
report.
Table
2.1.5
Plenary Sessions
The basic information generated by each breakout group was captured on
viewgraphs for presentation at the plenary sessions. Each group selected a
presenter for each plenary session to report their results. Often, the
presenters at the plenary sessions led the group discussions out of which the
viewgraphs and presentations were formulated. This approach assured that each
presenter understood the essence of each group's deliberations and was
comfortable with the concepts described in the plenary sessions. Appendix E
contains the viewgraphs presented at the plenary sessions (typed, and with
minor style improvements).
2.2
Demographics of Participants
A total of 64 individuals attended the Technical Workshop: 38 represented the
aerospace industry, 3 came from academia, 9 were software vendors and 13
attended from government (including all services and the DoE). The List of
Participants is provided in Appendix C. In terms of the employment of those
responding to the survey, approximately 39% were involved in research, 42% were
in management, 42% were in engineering, 23% were involved with production, and
10% were in computing.1 In terms of experience with VM, 6% had little or no
prior experience, 42% were investigating VM, 26% had a prototype implementation
of VM underway, and 26% viewed VM as a major thrust at their organization.
2.3
Relevant Background from User
Workshop
The purpose of this subsection is to summarize key information generated at the
User Workshop necessary to explain the events at the Technical Workshop. The
reader is encouraged to read the User Workshop Technical Report for a complete
picture of the user requirements (Submit a written request the Air Force
ManTech Technology Transfer Center, Fax: 513-256-1422; Phone: 513-256-0194).
2.3.1
Defining Virtual Manufacturing
The vision of Virtual Manufacturing is to provide a capability to
ÒManufacture in the ComputerÓ (see Figure 2-1). In essence, VM
will ultimately provide a modeling and simulation environment so powerful that
the fabrication/assembly of any product, including the associated manufacturing
processes, can be simulated in the computer. This powerful capability would
take into account all of the variables in the production environment from shop
floor processes to enterprise transactions. In other words, VM will
accommodate the visualization of interacting production processes, process
planning, scheduling, assembly planning, logistics from the line to the
enterprise, and related impacting processes such as accounting, purchasing and
management.
Click here for Picture Figure
2-1. VM VisionThree overarching
paradigms emerged during the User Workshop, and were used as the "accepted
definition" of VM for the Technical Workshop. For each of these paradigms, a
definition of VM was proposed to capture the view of VM within that paradigm.
For each of these definitions, the term ÒManufacturingÓ should be
construed in a broad sense to include not only production, but also suppliers,
customers, and other processes that impact production (This broad sense is
often referred to as Òbig-MÓ).Design-Centered VM:
VM adds Manufacturing information to the IPPD process with the intent of
allowing simulation of many Manufacturing alternatives and the creation of many
"soft" prototypes by ÒManufacturing in the Computer.ÓA near-term
definition: VM is the use of manufacturing-based simulations to optimize the
design of product and processes for a specific manufacturing goal such as:
design for assembly; quality; lean operations; and/or flexibility.A longer-term
definition: VM is the use of simulations of processes to evaluate many
production scenarios at many levels of fidelity and scope to inform design
(product and manufacturing system) and production
decisions.Production-Centered VM: VM adds simulation capability
to manufacturing process models with the purpose of allowing inexpensive, fast
evaluation of many processing alternatives.A near-term definition: VM is the
production-based converse of IPPD which optimizes manufacturing processes,
potentially down to the physics level. An example would be evolutionary
re-engineering/optimization of a fabrication facility.A longer-term definition:
VM adds analytical production simulation to other integration and analysis
technologies to allow high confidence validation of new processes and
paradigms. Examples would include revolutionary re-engineering of a processes
or factory, and/or introduction of virtual corporation
paradigms.Control-Centered VM: VM is the addition of simulation
to control models and actual processes, allowing for seamless simulation for
optimization during the actual production cycle.In summary, Design-centered VM
provides Manufacturing information to the designer during the design phase.
Production-centered VM uses simulation during production planning to optimize
lines/factories, including the evaluation of processing alternatives (one would
expect to do this sort of trade during IPPD, however, the evaluation during
this phase has more to do with equipment and people availability).
Control-centered VM uses machine control models in simulations, the goal of
which is process optimization during actual production. Production-centered VM
may or may not use actual control models for the simulation. Using them is
desirable, however, this may not be possible because the models were not
designed for simulation purposes or because they may simply be code without the
knowledge/information necessary for simulation. In one sense,
production-centered VM will "control" the factory because the factory will
ÒoperateÓ according to the plan created with the assistance of VM.
What
Benefits Does VM PromiseThe
User Workshop investigated and defined potential VM benefits from five
different perspectives. At the highest level, VM is expected to realize the
following benefits:AFFORDABILITY -- Reliable cost and process capability
information that can impact key design and management decisions, and support
balancing weapon system performance with manufacturing cost, schedule and
risk.QUALITY -- More producible designs moving to the shop floor and
higher quality work instructions to support production.PRODUCIBILITY --
First article production that is trouble-free, high quality, involves no
reworks, and meets requirements. Optimize the design of the manufacturing
system in coordination with the product design.FLEXIBILITY -- The
ability to execute product changeovers rapidly, to mix production of different
products, and to return to producing previously shelved products.SHORTER
CYCLE TIMES -- Increased effectiveness of the IPPD process and the ability
to go directly into production without false starts.RESPONSIVENESS --
The ability to respond to customer "what-ifs" about the impact of various
funding profiles and delivery schedule with improved accuracy (credibility) and
timeliness.CUSTOMER RELATIONS -- Improved relations through the
increased participation of the customer in the IPPD process, lower costs,
better schedule performance, improved quality, and greater responsiveness.
What
Are the Key
BarriersParticipants at the
User Workshop saw a number of key barriers to realizing VM. Although these are
not all technical, they must be considered as part of the development and
execution of the technology roadmap.A key portion of bringing VM into existence
is to develop and quantify VM benefits as a part of the process. In so doing,
these should be relate-able to currently used metrics (i.e., the metrics will
not be revolutionary). They should show a way to relate VM benefits to
specific product or system objectives as VM is simply a tool to achieve other
objectives. The general process for metric development will follow that of VM
in that benefits must be demonstrated, validated and recalculated in the new
environment.Significantly improved cost estimating and collecting systems will
be required to be able to deal with realistic cost comparisons at a detail and
accuracy level that most current systems cannot support. VM may necessitate
adopting radically different accounting practices from those in standard use
today.Weapon system development program funding profiles must change to become
more "front loaded" if significant VM is to be performed prior to production or
prototyping. Weapon system development on a "pay-as-you-go" basis rather than
development cost-shared by the contractor hoping to "get well" in production is
essential..Broader government access and visibility into sensitive company
areas could lead to the release of competition sensitive information.
User
Requirements on VMThe participants at the
User Workshop identified a number requirements on the VM "system." The
principle requirements which can potentially impact the technology roadmap are
summarized below in Table 2.
Description Comments
1 Incremental implementation & Adopting VM may require a strategic decision
adoption
2 A collection of small, The tools should be processed based,
incrementally implementable maintained by experts, not M&S people.
tools (building blocks) that
are modular, pre-verified, &
reusable
3 Integrate design and VM should not simulate design, but support
manufacturing processes it. VM should be able to evaluate partial &
complete designs. A formal structured
methodology for design abstraction is
necessary.
4 Agile to changes VM supports rapid verification of designs.
Changes in the physical environment should be
readily and easily reflected in the virtual
environment.
5 Reduction of product Facilitates creation of "soft prototypes".
development cycle
6 Optimization of manufacturing Investigate alternatives. Enhance risk
environment & assembly processes management. Reveal key strengths,
deficiencies and voids in the manufacturing
processes.
7 Enhancement of design for Predict schedule, cost & quality. Provide
producibility process capability and cost information to
guide the IPPD processes.
8 Supportive of IPPD processes, Reliably and verifiably link end-product or
focusing on cost component cost to specific design features
estimation/control and tolerances. Supports trend toward
Activity Based Costing.
9 Capture & retention of Uses model-based manufacturing (in part).
knowledge, especially for Supports the concept of "shelf technology".
training
10 Metrics that can achieve the Metrics must be reliable, believable and
incrementally achievable grounded in reality. Validation is essential.
benefits
11 Enhancement of management Comparison of alternatives for capital
decision-making processes investment. Support make/buy decisions.
The different approaches and participant viewpoints resulted in different foci on the technical areas. Furthermore, as the detailed explorations continued, the groups refined these technical areas. Each breakout group was assigned two to three of these technical areas for detailed exploration.
The result of the workshop discussion was to suggest that underlying technologies critical to VM could be organized into at least thirteen major categories. Table 3 contains that aggregated list of technical areas. Note that some technologies are listed in more than one technical area, the differences being context and/or use of the technology. The ordering in the table generally corresponds to the technical area strawman, but really has no significance with respect to priority.
Definitions of the technical areas are presented below:
Technical Area Other Descriptions, Group Commentary & Issues
Technologies Involved
T 1 Visualization Virtual Reality Brown
Multi-context analysis
& presentation GUI's
T 2 Environment VM System development Not Critical for advanced
construction environment Shells addressed applications and potential
technologies for a strong government
role Shell linkages to CAD
T 3 Modeling Modeling technologies Blue Broken up into product,
Model Libraries Brown process, information, and
Green activity Standards for
data gathering Integrated
distributed heterogeneous
databases
T 4 Representation Knowledge Based Blue Applicable at the process,
Systems Modeling Rule Brown design, manufacturing
based systems Object engineering, and
Oriented Expert enterprise levels
Systems Physics based Mathematical, statistical,
process models ontological, chaotic,
Feature-based models finite automata,
and simulations autonomous agents Software
development environment
Linkage to CAD Security,
encryption Extends across
enterprise operations. A
highly dynamic area but,
the products tend not to
be integrated
T 5 Meta-Modeling Model component Yellow Generic models
exchange
T 6 Integrating Sharing VM Framework Yellow Includes
infrastructure & Integration Blue telecommunications
architecture Green infrastructure, STEP
based technologies, global
co-location, groupware
Technical Area Other Descriptions, Group Commentary & Issues
Technologies Involved
T 7 Simulation Optimization Analysis Brown Multi-Dimensional
Simulation Tools Chaos Green Optimization (MDO)
modeling capability Focusing manufacturing
Software wrappers processes and cost
Generally, a high level of
activity and, at the unit
level, some of the
simulations are well done
and mature. But in
general, these are not
integrated into systems,
and because of their
specificity, they may not
be easily integrated.
T 8 Methodology Characterize customer Green Methodology was deemed to
requirements Cost imply a strong link to
modeling culture
T 9 Legacy data, Databases Programming Green Standards: accessibility,
models, API's transportability,
information, abstraction, update, V&V
hardware, & Corporate culture
software
T 10 Manufacturing Representation of Red Cycle-time, yields, etc.
characterization product/process Design Often involves modeling
by features Predictable processes Cost
Manufacturing ontology modeling Closed-loop
System behavior Shop design/mfg tools Contains
floor data gathering the ability to convey
Models which describe measures of uncertainty
manufacturing processes and risk. The maturity
level of products in the
area is low and there is
only a medium amount of
activity under way.
T 11 Verification, Metrics, Virtual Red Cross system validation
Validation & metrics Performance Methodology for validation
Measurement Decision tools System performance
(hardware/software related
speed and accuracy)
Technical Area Other Descriptions, Group Commentary & Issues
Technologies Involved
T 12 Workflow Process control Red Although some products
here are quite mature,
they are limited in their
range of applicability and
are not integrated into
systems control
technologies. One major
problem here is that there
seems to be little or no
"user pull."
T 13 Cross functional Product model Blue Product model
trade representation representation standards
technologies standards Function Semantics Function
output integration automation may have the
Function automation highest payoff, but is
probably much longer term
in any generalized sense
In general, each of the VM technical areas identified were found to match one or more of the user requirements. The match to user requirements necessitated a technical view built upon modularity, a building block approach , and incremental implementation (User Requirement #2). The key risk was in trying to link local, incremental progress to global Òcost ,schedule and qualityÓ benefits. Some technical areas were determined to be more relevant to satisfying user requirements than others. In particular, many participants suggested that the Manufacturing Characterization Technical Area had the highest potential for impact on user requirements. Again, the results of the discussions are contained in the viewgraphs in appendix E.
In developing the rankings during Phase I, different groups developed their own set of prioritization criteria. For some, however, independently ranking these technology areas made little sense because they are heavily interdependent. In general, individual choices were not measured on a criterion by criterion score assignment method. Rather the full set was used by individuals at arriving at ÒvotesÓ. Some of the criteria used were:
· Implementation timeline position
· Construction of a good foundation first, with visible benefits
· Palatability to management, with the weighing of effort, cost, and time in light of completion impacts and desired leadership position.
· Market pull impact
· Risk
· Whose dollars are being used
· Leveraging existing developments and plans.
3.4
Risks
The risks associated for each technical area was discussed during Phase I and
are documented in the viewgraphs in appendix E. Highlights include:
· A "Core Technology" is one which is fundamental and critical to VM. In essence, the set of core technologies defines what VM can do.
· An "Enabling Technology" is one which is not core, but which is necessary to build a VM system.
· A "Show Stopper Technology" is one that, without which, a VM system cannot be built (at least in some context). That is, progress must be made in a show stopper technology to build the VM capability envisioned.
· A "Common Technology" is one which is widely used and needed in other domains, but which is important, perhaps critical to VM. Depending on functionality, a common technology can also be and enabler or show stopper.
Table 4 contains a listing of technologies identified during the workshop and
an indication of its status according to the workshop participants (the items
with an asterisk [*] were identified in the user workshop, and were offered at
the plenary session on slide 19).
Table
Technology Core Ena-bl Show Com-mo
er Stop n
1* Computer characterization of manufacturing X X
processes
2 VM Methodology for Process Characterization X
3 Technologies to simulate assembly operations X
4 Generative Process Planning X
5 Declarative Representation of Product and Process X
6 Physics-Based Process Modeling X
7* Methodology/protocol/grammar to represent X
knowledge
8* Product Definition Models with variable X
resolution levels
9* Object oriented, dynamic, functional languages X
and event-based modeling
10* 3-D surface based modeling X
11* Model component exchange X
12* Ability to integrate dynamic, distributed, X
collaborative models
13 Meta-Models X
14 Neutral Language for VM Meta-Model X
15* Cost database & integration X
16* Large-scale integrated database structure X
17 Object Oriented Databases X
18* Data exchange standards, linkage of primes, subs, X X
customer
19* Techniques to map metric information from tools X
to enterprise metrics
20* Machine Intelligence X
21 Knowledge Based Systems, Rule Based Systems X
22 AI Shells, Neural Networks, Fuzzy Set Theory X
23 VM User Interface (communication between VM X
knowledge system and user)
24 VM Verification & Validation Methods, Algorithms X
& Tools
25* Process model and simulation validation X
26 Model verification tools X
Technology Core Ena-bl Show Com-mo
er Stop n
27* Software which is highly reconfigurable & modular X
28 Chaos Theory X
29 Autonomous Agents X
30 Computer hardware performance, high performance X X
computing
31 Networking/Communications X
32 Display Technologies X X
33* Security, Encryption X X
34 VM 3 Schema (Semantics) X
35 Methodology for using a VM system X
36 VM Framework (Guidelines, Integration Standards, X
etc.)
37* Methodology for design abstraction X
38 Conflict Resolution to achieve "best design" X
39 Tools to relate conceptual design with possible X
manufacturing methods and processes and cost
estimates based on manufacturing features
40 Manufacturing engineering automation (knowledge X
based computer applications to perform
manufacturing engineering decision making)
41 ÒSTEPÓ type technologies which would integrate X
and relate information between process phases
42 Decision support tools for automated evaluation X
of decision impact
43 Workflow Tools X X
44 Simulation Architecture X
Exploring the interdependencies necessitated some discussion on a VM Framework
or Architecture. Two of the groups developed and presented such figures.
Figure 4-1 presents a software framework for VM and relates VM to other high
order business systems. The message of the figure is that one would build
specific VM systems (e.g., one for design analysis or manufacturing cost) using
the technologies, organized hierarchically from meta-models through hardware.
Example VM core technologies in each technical area are listed on the left.
Interfaces must be provided to each VM system and to the technical areas (the
boxes with an X on the right). Some participants expressed the view that the
simulation models would need to extend through the Meta-Model to the Knowledge
Representation System level. This view was not resolved, but it is not a show
stopper for using the representation. Figure 4-2 presents a slightly different
VM Framework which includes an emphasis on the role of manufacturing
characterization.
4.2
Ranking of Technical Areas
For Phase IV, the groups were asked to assess the criticality of each of the
technical areas and determine the top three, that is, identify the near-term
technology hitters. (This is a different ranking from that used during Phase I
to rank the technical areas).
The Integrating Infrastructure and Architecture Technical Area (Technical Area #6 in Table 3) was identified as one of the top three priority areas for VM effort by all groups. The consensus was that you really aren[[Otilde]]t going to build VM without an architecture. Furthermore, although there is a high level of research activity in this area, mainly software driven, its maturity level is low and deserves ManTech's attention in formulating its VM Roadmap.
Although constructing a VM architecture or framework is necessary to realize VM, the high ranking of this Technical Area by all groups has a greater basis. First, a well-defined architecture would help distinguish VM from the many common technologies associated with VM which are useful in a wide variety of domains. Second, a framework would help to scope VM technically and provide a logical, consistent basis for prioritizing further VM investments. Third, the effort to create the VM architecture would provide a mechanism for better understanding of the interdependencies of the technologies related to VM. That is, it would provide technical guidance to the technology roadmap.
Click here for Picture
Figure 4-
Click here for Picture
Figure 4-
The Representation Technical Area (Technical Area #4 in Table 3) also received a high priority from the participants. This area involves the representation of manufacturing knowledge at the process, design, manufacturing, engineering and enterprise levels. This is a highly dynamic area, at present, but tends to be done in isolation, hence, the integration of representations becomes an early issue. Tackling these representation issues in the context of realizing VM would offer clear guidance to those addressing the issues.
Finally, progress in the Manufacturing Characterization Technical Area (Technical Area #10 in Table 3) is a necessary precursor to progress in the Representation Technical Area, making this area a high priority for the VM initiative. Several problems were identified in this area that are of significance to VM. First, simply collecting data for characterization is expensive, and is generally viewed as a non-value-added operation. Hence, methods for justifying the expenses must be developed (Technical Area #11 in Table 3). Second, standards to guide the data gatherers and model builders do not exist. Cost effectively developing generic models for VM use may demand such progress. Third, methods for representing the knowledge of manufacturing characterization are isolated, a fact which re-enforces the need for work in the Representation Technical Area.
Several technologies were not rated high by groups because participants believed additional investments in those areas by VM proponents would not significantly impact their course. That is, although important, they are not expected to be significantly influenced by VM investments. Technologies in the "common" category of Table 4 generally are in this area.
Table 5 displays the top technical areas by group.
4.3
Breakout Group Technology Roadmaps
As mentioned before, each group was asked to develop a technology roadmap from
the perspective of the technical areas on which it focussed. One group chose
to pursue a path where VM should evolve to a Òsmart CADÓ
capability which is built upon a symbolic representation product. CAD was
highlighted as needing to relate to points, lines and arcs. Note that although
the word "product" is used, in reality, process impacts are also considered a
great deal in Smart-CAD. That roadmap is presented below in Figure 4-3. It is
important to note that only one set of links in its technology roadmap was
analyzed in depth and the rest of the map is thoroughly untested.
Another group captured their view of the interrelationships of the legacy
systems. That roadmap is presented below in Figure 4-4.
Table
Blue (1) Common symbolic representation of the product (this is the focused
technical kernel) (2) Functional Output Standards (3) VM integration
infrastructure/architecture
Brown (1) Process Representation Specification (2) Manufacturing Feature
Representation (3) Cross-Functional Simulation Strategy & Optimization
(4) Cognitive Modeling (5) Framework for Modeling, Simulations and
Systems Interaction
Green (1) Process/data identification, relationship, and intent (includes
information modeling, database technology, process modeling, grammars,
abstractions and standards) (2) Integration of existing systems/data to
allow seamless communication through organization (3) Visualization
through simulation, modeling & visualization techniques
Red (1) Gathering, aggregating and properly analyzing empirical data for
evolution of generic models (2) Properly validate those models so that
they can be used with confidence to support design/manufacturing
decision-making processes (3) Integration, the creation of an
overarching framework into which all VM elements could be placed
Yellow (1) Representation of product/process knowledge (2) VM Framework (3) VM
3-Schema (4) Methodology for process characterization (5) Visual user
interface
Click here for Picture
Figure 4-
Click here for Picture
Figure 4-
4.4.1
VM Roadmap: Architecture Thrust
Based on the individual technology roadmaps, and the prioritized technology
areas described above, it is clear that the first thrust of the VM Roadmap must
be the creation of the VM Framework or Architecture. In order to develop such
an architecture, the developer must have rather specific insights into all of
the component pieces, including all of the technical areas and technologies
listed earlier. The insights must include information on the pace of
technology development (specific to each technology), the likely impact of
varying funding profiles on those developments, and the impact of the
interdependent technologies. In essence, by placing Architecture/Framework as
a top technical area, the participants are recommending a detailed exploration
of the interactions of all the technologies for realizing VM.
Click here for Picture
Figure 4-5. Strawman Architecture
A strawman architecture for a VM system was presented at the opening plenary session and referred to during the breakout sessions. That architecture showed VM as being comprised of three major components: models, simulation and an environment. The technical areas (Table 3) developed during the workshop partially fit into this architecture. The areas of modeling, representation, meta-modeling, and manufacturing characterization fit the "model" component; the areas of visualization and simulation fit the "Simulation" component; and the areas of environment construction technologies, methodology, legacy and workflow fit the "Environment" component. The various kinds of technologies are shown graphically in the figure at right.
Although it is a good beginning, such an architecture is insufficient for the
integrating infrastructure and architecture technical area as described at the
workshop. The architecture must show how all of the VM technologies fit
together, including those dealing with methodologies, metrics, validation, and
cross-functional trades. It should highlight those technologies that are
foundational to VM from those that are merely window dressings. The first
thrust is expected to start with this strawman, and address these issues.
4.4.2
VM Roadmap: Technological Underpinnings Thrust
The second thrust for the VM Roadmap is to investigate the theoretical and
technological underpinnings for Virtual Manufacturing. The need for this
investigation is captured in the detailed breakout groups in Appendix E. In
brief, the research should be directed at:
· finding research that is relevant to VM,
· assessing the status of key technologies (from those listed in Table 4) for realizing VM,
· determining the gaps in the research and technologies that may negatively impact realizing VM (e.g., show stoppers),
· assessing the time-frames for completion/maturity of relevant research,
· cataloging the trends in R&D being pursued by academia, government agencies and industry,
· discovering applications underway of relevance to VM, and
· creating 5 and 10 year "outlooks" for expected-to-emerge VM technologies.
4.4.3
VM Roadmap: Selective Addition of Animation Thrust
According to the participants, many in industry who are already actively
pursuing VM are following this path, namely, the selective addition of
animation to MRP and CAD systems. The purpose of this approach is to build
some dynamism into what are essentially static systems, but focussed on those
technologies which help industry. This incremental approach to adding
animation and evolving methodologies for simulation-based reasoning is expected
to help "sell" VM to industry leaders.
4.4.4
VM Roadmap: Development of Shop Floor Based Generic Models Thrust
As mentioned above, the manufacturing characterization technical area was
identified as one of the top priority areas. Several problems were identified
in this area that are of significance to VM that should be addressed in this
thrust. First, simply collecting data for characterization is expensive, and
is generally viewed as a non-value-added operation. Hence, methods for
justifying the expenses must be developed (Technical Area #11 in Table 3).
Second, standards to guide the data gatherers and model builders do not exist.
Cost effectively developing generic models for VM use may demand such progress.
Third, methods for representing the knowledge of manufacturing characterization
are isolated, a fact which re-enforces the need for work in the Representation
Technical Area.
4.4.5
VM Roadmap: Metrics Thrust
As mentioned often during both workshops, metrics must receive significant
attention for VM realization. The metrics investigation for VM falls into
three general areas. First, one must be able to reliably associate shop floor
decisions with overall measures of cost, risk, time and quality. Too often in
today's environment, local decisions improve these measures locally, but
negatively impact the whole company or enterprise. This impacts VM in two
ways: (1) such an association is necessary to successfully deploy and use VM,
and (2) the deployment and use of VM may offer an approach to perform the
association.
The second metrics investigation area must focus on the cultural impacts of VM. Especially at the Users Workshop, the problem of current culture and the adoption of VM was a critical concern. Because metrics can be used to drive the cultural change, one aspect of the metrics investigation must address the cultural impacts of VM.
The third area is in the verification and validation of the VM systems. Any
modeling and simulation system will only be used to the extent that the users
and decisions makers have confidence the simulations represent the physical
systems, and that changes in the virtual systems will result in predictable
changes in the physical systems. Again, the V&V of the VM systems is
largely dependent upon and driven by the metrics.
4.4.6
VM Roadmap: Representation Thrust
The representation technical area was also deemed of critical importance to
realizing VM. The purpose of this thrust is to investigate the integration of
knowledge representation schemes and methods for manufacturing knowledge that
will support decision-making (e.g., risk analysis, load-leveling, etc.) and
simulation-based cost analysis early in the product life-cycle. The
representation schemes should be applicable at the process, design,
manufacturing, engineering and enterprise levels.
4.4.7
VM Roadmap: Integrating the Thrusts
As mentioned at the beginning of the section, the purpose of the thrusts is to
facilitate focusing on specific requirements for VM as addressed in the two
workshops, and yet take a wide swath through the technology areas. In order to
integrate the results of these thrusts as they are executed, two other
activities are necessary: VM demonstrations and VM pilots. The pilots and
demonstrations should be conducted as a forum to bring the activities of the
disparate thrusts together and cause cross-fertilization of ideas, techniques,
technology advances, and expected accomplishments on the horizon. The VM
demonstrations, as described in the Users Workshop Technical Report, are
expected to be broad-based and attract a wide-audience, whereas the pilots will
be specific implementations of VM systems that may also be a part of the
demonstrations.
As recommended at the User Workshop, a consortium should be formed to oversee the VM initiative. Figure 4-6 graphically shows the meetings of this consortium along with the thrusts and integrating activities along a rough time scale.
Click here for Picture
Figure 4-
5.
Conclusions & Recommendations
Many recommendations were generated during the workshop. The specific,
consensus-developed recommendations from each breakout session, including which
organizations should perform what activity, are presented in the viewgraphs
contained in Appendix E. The overall workshop recommendations are summarized
below:
· Conduct significant industry/ government research immediately in the area of the VM core technologies.
· Develop a VM Framework or Architecture which accommodates all of the technologies and technical areas mentioned in this report.
· Serve as a catalyst, a neutral broker, and a clearing house for pre-competitive technologies and specifications in the representation area. The government is in the right position to work with industry to broadly test specifications against a series of pilot projects and to accelerate the standardization process.
· Validate the findings of this workshop with users.
· Carry out the recommendations generated at the User Workshop.
5.1
Caveats
3-D modeling 3-Dimensional modeling
AI Artificial Intelligence
API Application Programming Interface
ARPA Advanced Research Projects Agency
CAD Computer Aided Design
CE Concurrent Engineering
DemVal Demonstration/Validation
DIS Distributed Interaction Simulation
DoD Department of Defense
DoE Department of Energy
DoT Department of Defense
ECO Engineering Change Order
EINet Enterprise Integration Network
EMD Engineering Manufacturing Development
GUI Graphical User Interface
IGES Initial Graphics Exchange Specification
IPPD Integrated Product Process Development
IPT Integrated Product Team
JDL Joint Directors of the Laboratories
MDO Multi-Dimensional Optimization
M&S Modeling and Simulation
MS&T Manufacturing Science and Technology
NII National Information Infrastructure
NIST National Institute for Standards and Technology
NSF National Science Foundation
PDES/STEP Product Data Exchange using STEP which is the
Standard for the Exchange of Product Model Data
TQM Total Quality Management
VE Virtual Enterprise
VM Virtual Manufacturing
V&V Verification and Validation
Appendix B
Appendix C
Appendix D
Appendix E
·
